The world's first hydrogen-powered VTOL, long endurance drone without noise and vibration

DJ25

Maximum Flight Time of 5.5 Hours, Maximum payload of 4kg

  • Ultimate long endurance drone which can stay airborne for 330 minutes

    The hydrogen-powered version of VTOL has endurance of 330 minutes, which is more than twice of the lithium battery version. This can greatly improve work efficiency and reduce costs. DJ25 can fly 450KM when flying at an average speed of 25m/s, suitable for all long-distance inspections and large-area surveying & mapping.

  • Ultimate long endurance drone which can stay airborne for 330 minutes

    The hydrogen-powered version of VTOL has endurance of 330 minutes, which is more than twice of the lithium battery version. This can greatly improve work efficiency and reduce costs. DJ25 can fly 450KM when flying at an average speed of 25m/s, suitable for all long-distance inspections and large-area surveying & mapping.

  • Low Noise, No vibration

    Hydrogen fuel cell power generation is achieved through chemical reactions. Compared with the oil-powered version, the hydrogen-powered version has low noise and no vibration during power generation. It is stable and efficient when loading various mission equipment, and reduces the shortcomings of shortened service life caused by engine vibration. Suitable for fire emergency, maritime and border inspections.

  • Low Noise, No vibration

    Hydrogen fuel cell power generation is achieved through chemical reactions. Compared with the oil-powered version, the hydrogen-powered version has low noise and no vibration during power generation. It is stable and efficient when loading various mission equipment, and reduces the shortcomings of shortened service life caused by engine vibration. Suitable for fire emergency, maritime and border inspections.

  • Convenient usage without further requirements

    Fuel cell does not require regular maintance or equipment replacement, which saves costs and time. Using DMI's hydrogen tank refueling and delivery service, it only takes 30 seconds to replace the hydrogen tank and start the mission immediately.

  • Convenient usage without further requirements

    Fuel cell does not require regular maintance or equipment replacement, which saves costs and time. Using DMI's hydrogen tank refueling and delivery service, it only takes 30 seconds to replace the hydrogen tank and start the mission immediately.

  • Easy to Operate

    We offer a variety of flight control options, including handheld tablet, portable ground control station, vehicle-mounted/base ground control station, etc.

  • Easy to Operate

    We offer a variety of flight control options, including handheld tablet, portable ground control station, vehicle-mounted/base ground control station, etc.

  • Adaptable Monitoring/Mapping Payload

    The MG-202 pan-head camera is equipped with an advanced 50x lossless photoelectric zoom camera and an infrared camera that can perform round-the-clock reconnaissance and surveillance in the target area. The CA102 features a 35mm full-frame Exmor R CMOS™ backlit image sensor with a 5.6/35 lens.The four-angle damping scheme ensures the highest accuracy and the best results. CA-503 has the characteristics of light weight, small size, reasonable focal length, high compatibility and low maintenance cost. It can output five POS information at the same time, accurately record the exposure data of each camera, and improve the accuracy of mapping results.

  • Adaptable Monitoring/Mapping Payload

    The MG-202 pan-head camera is equipped with an advanced 50x lossless photoelectric zoom camera and an infrared camera that can perform round-the-clock reconnaissance and surveillance in the target area. The CA102 features a 35mm full-frame Exmor R CMOS™ backlit image sensor with a 5.6/35 lens.The four-angle damping scheme ensures the highest accuracy and the best results. CA-503 has the characteristics of light weight, small size, reasonable focal length, high compatibility and low maintenance cost. It can output five POS information at the same time, accurately record the exposure data of each camera, and improve the accuracy of mapping results.

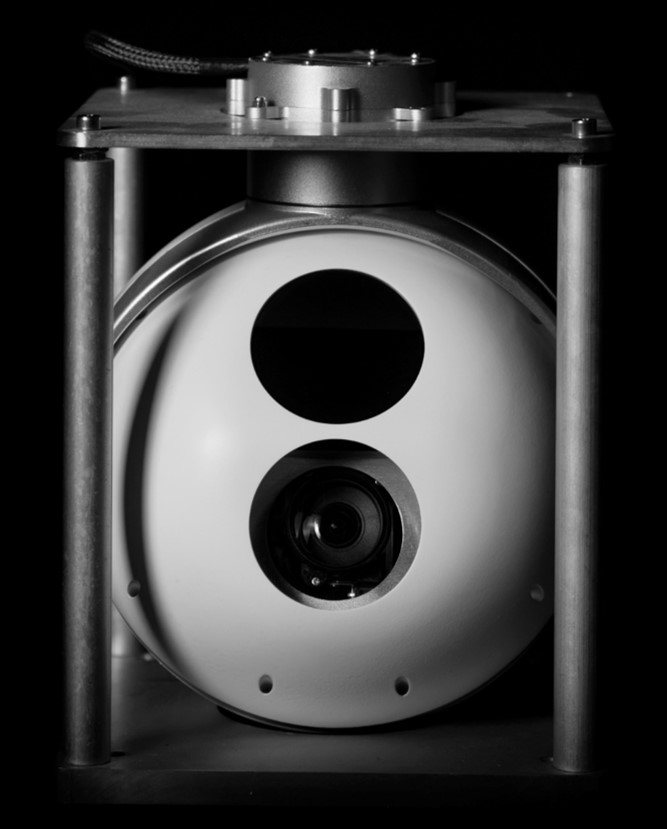

Monitoring –

 MG-202

Stable EO/IR lightweight
pan-head camera system

Surveying and Mapping –

 CA102

42.4 MP
Full frame aerial camera

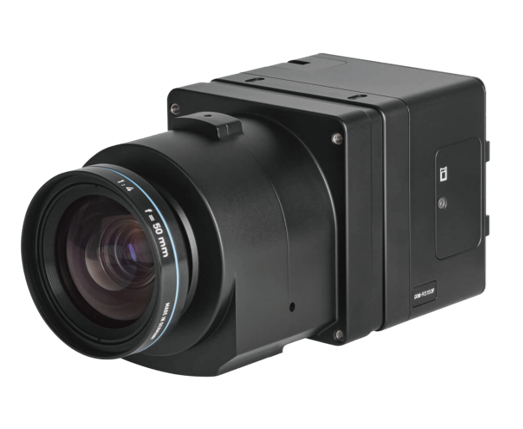

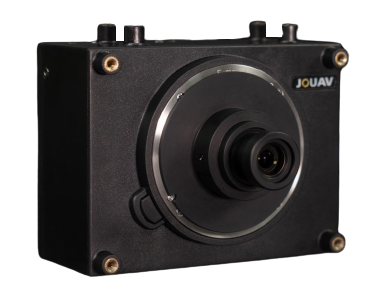

Surveying and Mapping –

 IXM-100

Medium frame
industrial camera

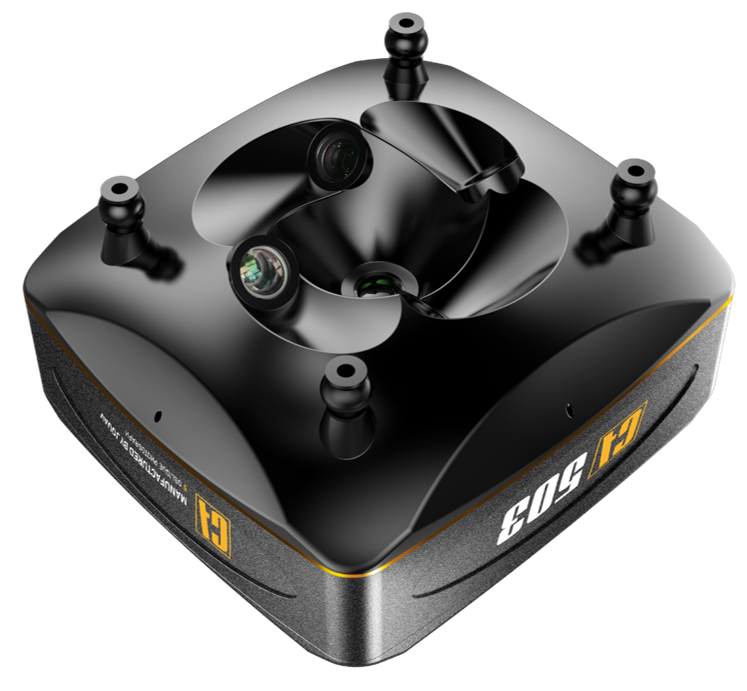

Surveying and Mapping –

 CA503

210 million pixels
Full frame tilt camera

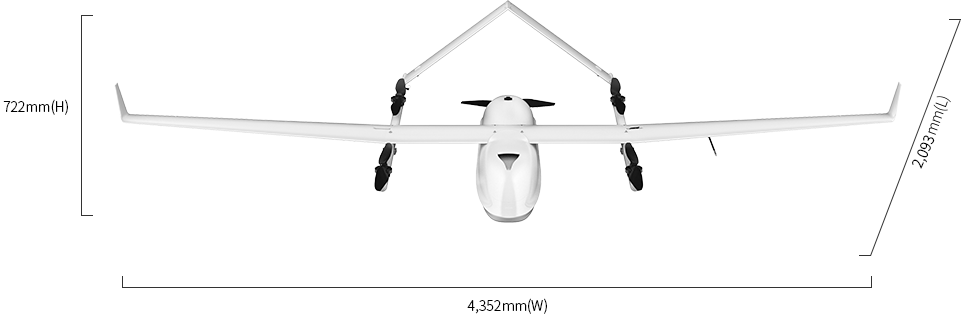

DJ25 Specs

DJ25 Specs
Product
DJ25
ECO Cruising Speed
22m/s
Release Date
2.1m/4.4m
Max Altitude
3,500m
Length/Span
2.1m/4.4m
Wind resistance
10.8 ~13.8 m/s
Payload(Max)
4kg
Max Take off Weight
31kg
Flight Time
330min (with payload)
Power Module System Weight
7kg (with 12L Type 3 cylinder);8kg (with 10.8L Type 4 cylinder
