Smaller, lighter modular kit

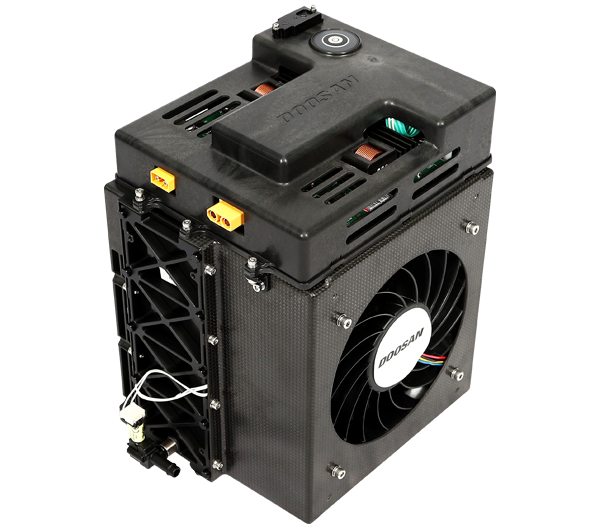

DM15/DP15
Powerpack Module
This compact version of DM30 will work with any drones for fuel efficiency. DM15 is a modular kit without exterior housing which allows easy integration into other drone airframes. DP15 is a powerpack with exterior housing and could be attatched to the equipment externally.
-
Fits with All Size Drones
DM15/DP15, with less weight and rated power, was constructed in compact size to fit inside any airframe. The system integration was optimized to achieve long product life and high stability in restricted weight. You need only M3 bolts to integrate with the drone.
* Recommends a drone with waterproof capability and 10m/s wind-resistance. -
Fits with All Size Drones
DM15/DP15, with less weight and rated power, was constructed in compact size to fit inside any airframe. The system integration was optimized to achieve long product life and high stability in restricted weight. You need only M3 bolts to integrate with the drone.
* Recommends a drone with waterproof capability and 10m/s wind-resistance. -
Optimized to stabilize temperature
Optimized algorithm for controlling low and high temperature was devised to provide fuel and cooling at the same time. At the same time, a fan with high specification of 140mm and a heater is inserted inside the module.
-
Optimized to stabilize temperature
Optimized algorithm for controlling low and high temperature was devised to provide fuel and cooling at the same time. At the same time, a fan with high specification of 140mm and a heater is inserted inside the module.
-
Reliable in times of emergency
DCDC full converter was implemented to prevent voltage swing caused by load variation of fuel cells. In times of overpower, this regulator board induces battery discharge to control output, protecting the drone from 60V-high voltage.
-
Reliable in times of emergency
DCDC full converter was implemented to prevent voltage swing caused by load variation of fuel cells. In times of overpower, this regulator board induces battery discharge to control output, protecting the drone from 60V-high voltage.
-

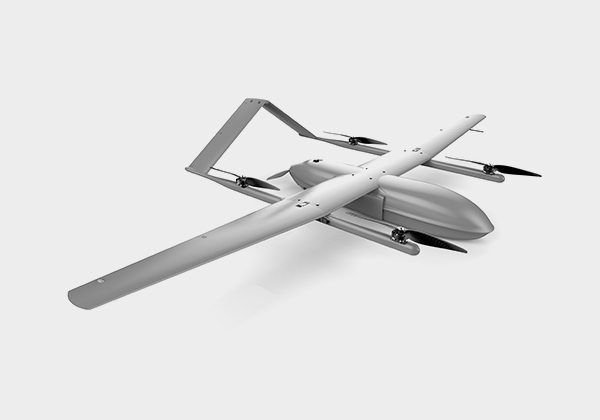

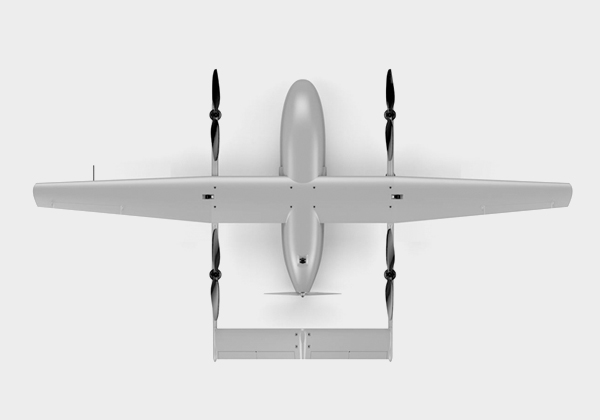

Application example: DJ25
-
Application example: DJ25
Powerpack (DM15/DP15) Specs


Product |
DM15/DP15 |

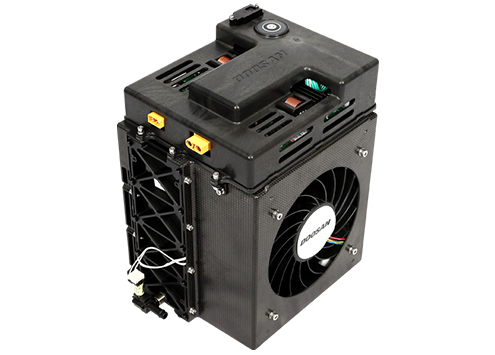

DM15 Dimensions (W x L x H) |
260(W) x 250(L) x 170(H) mm |
---|---|---|---|
Rated Power |
1.25KW |

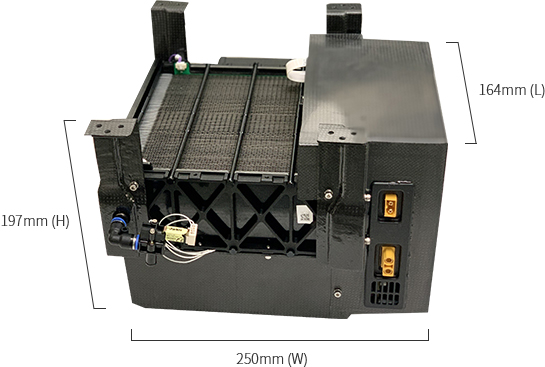

DP15 Dimensions (W x L x H) |
250(W) x 164(L) x 197(H) mm |
Peak Power |
9kW |
Hydrogen Pressure |
0 ~ 350bar |
Weight (DM15, Module) |
2.9kg |
Operating Temperature |
0 to 35℃ |
Weight (DM15, w/ 10.8L Tank) |
7.6kg |
Storage Temperature |
-10 to 40℃ |
Weight (DP15, w/o Tank & Batteries) |
3.3kg |
Hybrid Battery (Option 1) |
LiPo (2,600mAh x 2) |
Weight (Dp15, w/ 10.8L Tank) |
8.9kg |
Hybrid Battery (Option 2) |
LiPo (1,800mAh x 2) |
Communication Method |
LTE, RF, DTT* |
Hybrid Battery (Option 3) |
LiPo (10,000mAh x 2) |
*DTT: Data Transparent Transmission
**When purchasing powerpack, hydrogen tank is not included (Replaceable tank)
