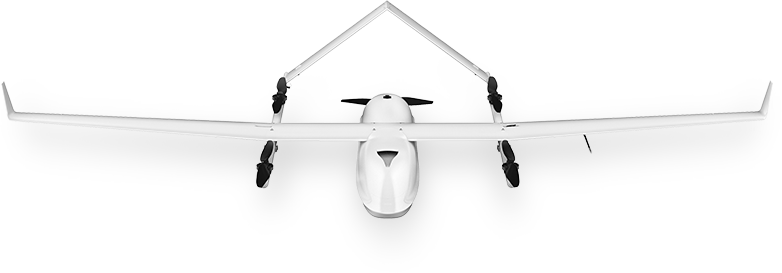

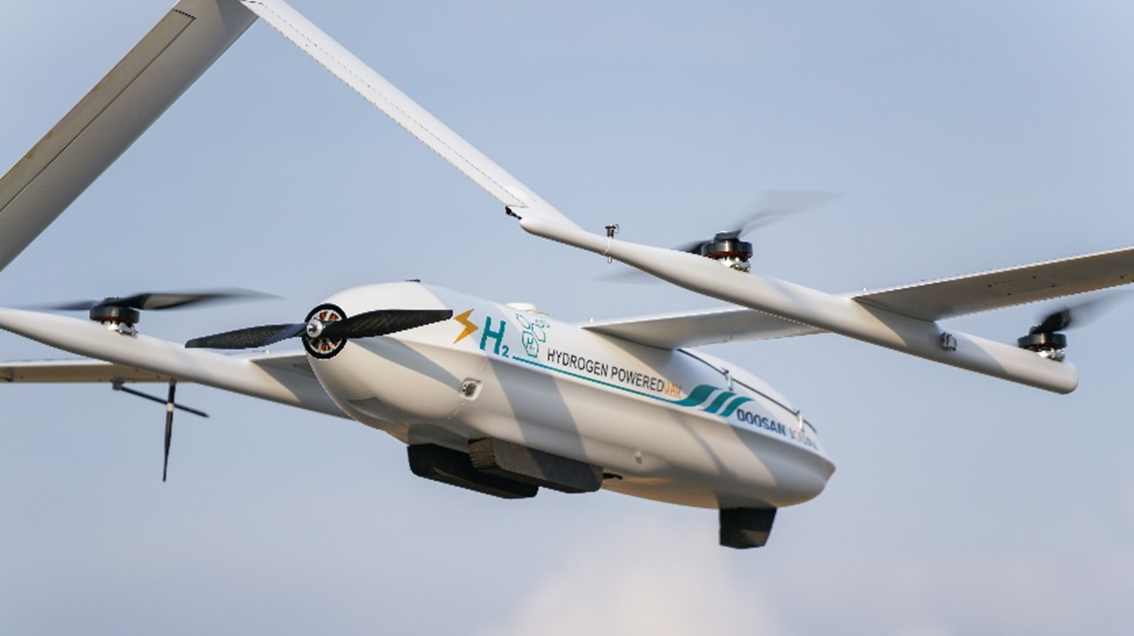

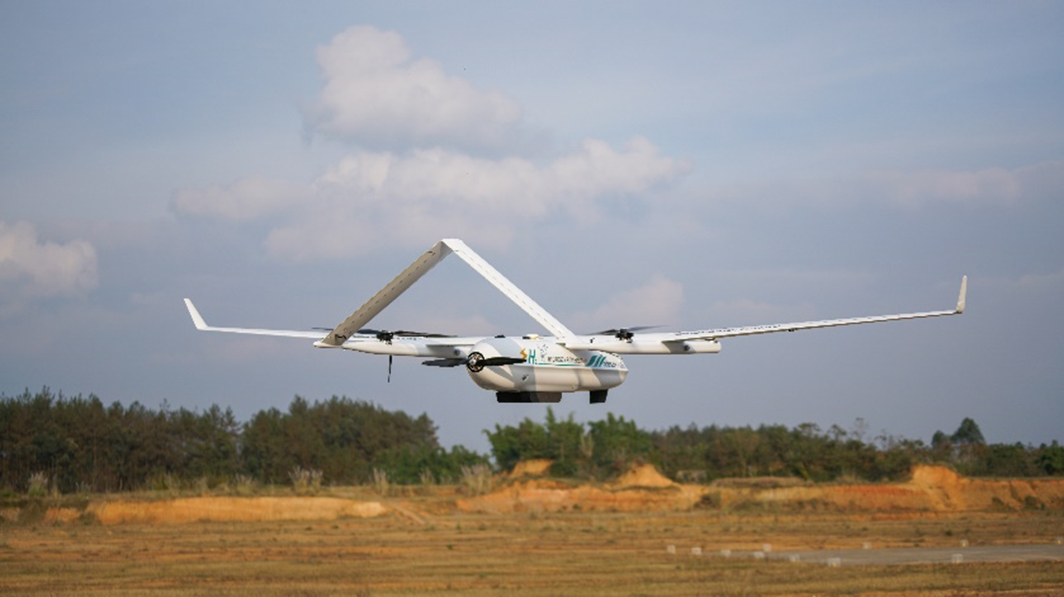

The world's first hydrogen-powered VTOL, long endurance drone without noise and vibration

DJ25

Maximum Flight Time of 4.5 Hours, Maximum Payload of 2.5kg

  • Ultimate long endurance drone

    The hydrogen-powered version of VTOL has endurance of 300 minutes, which is more than twice of the lithium battery version. This can greatly improve work efficiency and reduce costs. DJ25 can fly 418KM when flying at an average speed of 25m/s, suitable for all long-distance inspections and large-area surveying & mapping.

  • Ultimate long endurance drone

    The hydrogen-powered version of VTOL has endurance of 300 minutes, which is more than twice of the lithium battery version. This can greatly improve work efficiency and reduce costs. DJ25 can fly 418KM when flying at an average speed of 25m/s, suitable for all long-distance inspections and large-area surveying & mapping.

  • Low noise, no vibration

    Hydrogen fuel cell power generation is achieved through chemical reactions. Compared with the oil-powered version, the hydrogen-powered version has low noise and no vibration during power generation. It is stable and efficient when loading various mission equipment, and reduces the shortcomings of shortened service life caused by engine vibration. Suitable for fire emergency, maritime and border inspections.

  • Low noise, no vibration

    Hydrogen fuel cell power generation is achieved through chemical reactions. Compared with the oil-powered version, the hydrogen-powered version has low noise and no vibration during power generation. It is stable and efficient when loading various mission equipment, and reduces the shortcomings of shortened service life caused by engine vibration. Suitable for fire emergency, maritime and border inspections.

  • Suitable for large area mission range

    This hydrogen VTOL UAV specially designed for large-area mission range has long endurance, speed, high payload capacity, durability, and reliabilty.

  • Suitable for large area mission range

    This hydrogen VTOL UAV specially designed for large-area mission range has long endurance, speed, high payload capacity, durability, and reliabilty.

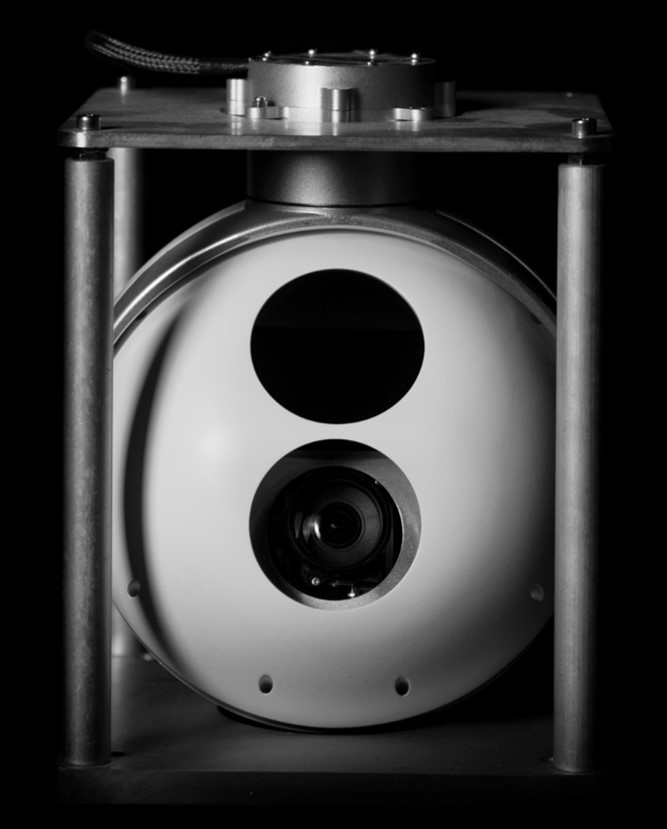

  • Compatible with JoLiDAR series

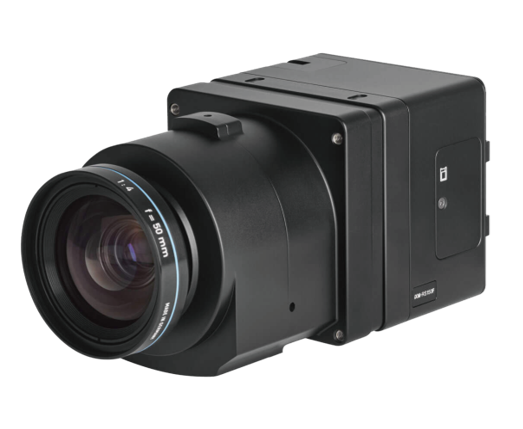

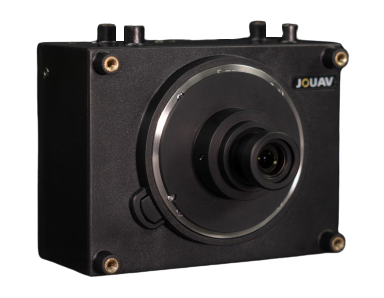

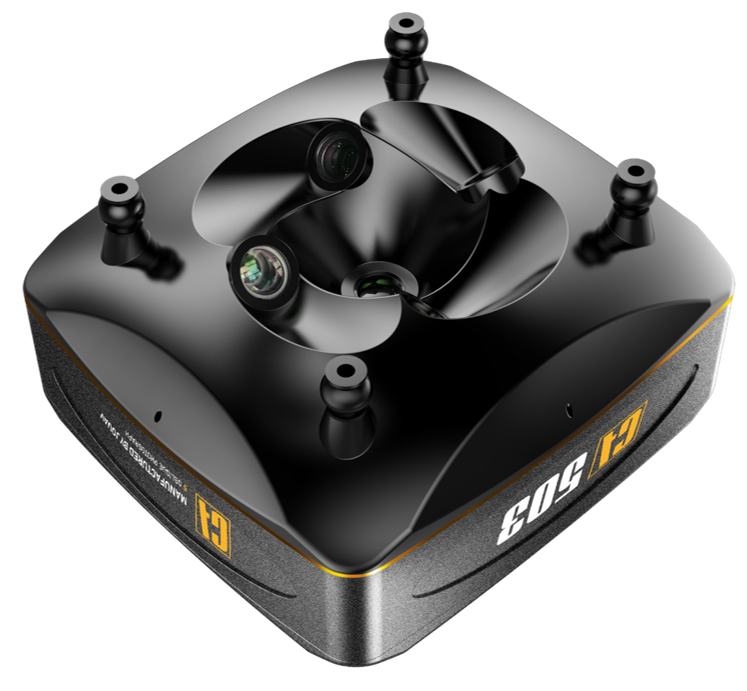

    The JoLiDAR series can be integrated with products including laser scanners, high-precision GNSS positioning systems, full-frame cameras, and inertial navigation systems. It is a laser radar scanning system independently developed by JOUAV, with a variety of radar products for both short-distance and long-distance measurement.

  • Compatible with JoLiDAR series

    The JoLiDAR series can be integrated with products including laser scanners, high-precision GNSS positioning systems, full-frame cameras, and inertial navigation systems. It is a laser radar scanning system independently developed by JOUAV, with a variety of radar products for both short-distance and long-distance measurement.

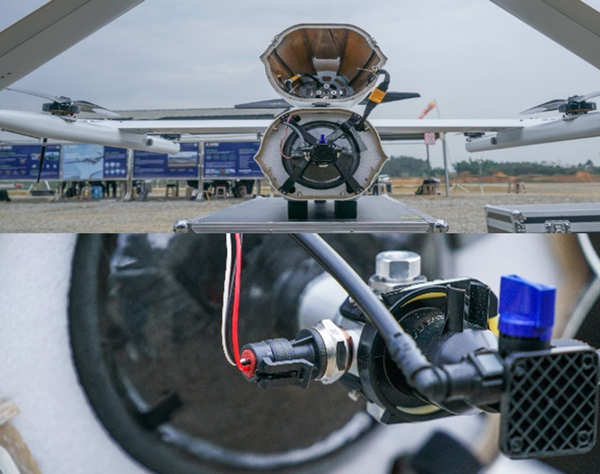

  • Convenient and efficient refueling

    DMI provides hydrogen charging and distribution services. Customers only need to replace the hydrogen tank to continue their tasks. There is no need for regular maintenance and replacement of parts during the use of the fuel cell, which not only saves the cost of use, but also saves time.

  • Convenient and efficient refueling

    DMI provides hydrogen charging and distribution services. Customers only need to replace the hydrogen tank to continue their tasks. There is no need for regular maintenance and replacement of parts during the use of the fuel cell, which not only saves the cost of use, but also saves time.

  • Convenient Movement & Storage

    Use Doosan Mobility Innovation's innovative hard case to easily move and store fuel cell powerpacks.

  • Convenient Movement & Storage

    Use Doosan Mobility Innovation's innovative hard case to easily move and store fuel cell powerpacks.

DJ25 Specs

DJ25 Specs
Product
DJ25 (CW-25)
Dimensions (W x L x H)
2,093(W) x 4,352(L)
x 722(H) mm
Flight Time
(w/o Payload)
279min
Weight (w/ 10.8L Tank)
28kg
Maximum Takeoff Weight
30.5kg
Maximum Payload
2.5kg
Hydrogen Tank
10.8L
Rated Output
720W
Operating Temperature
0 ~ 35℃
