Smaller, lighter modular kit

DM15/DP15
Powerpack

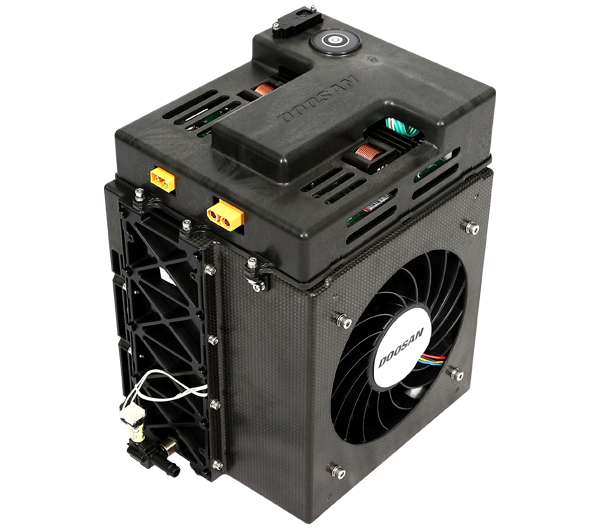

This compact version of DM30 will work with any drones for fuel efficiency. DM15 is a modular kit without power boards and brackets that can be easily integrated into other drone airframes. DP15 is a smaller powerpack with power boards, brackets, and batteries.

  • Fits with All Size Drones

    DM15/DP15, with less weight and rated power, was constructed in compact size to fit inside any airframe. The system integration was optimized to achieve long product life and high stability in restricted weight. You need only M3 bolts to integrate with the drone.
    * Recommends a drone with waterproof capability and 10m/s wind-resistance.

  • Fits with All Size Drones

    DM15/DP15, with less weight and rated power, was constructed in compact size to fit inside any airframe. The system integration was optimized to achieve long product life and high stability in restricted weight. You need only M3 bolts to integrate with the drone.
    * Recommends a drone with waterproof capability and 10m/s wind-resistance.

  • Optimized to stabilize temperature

    Optimized algorithm for controlling low and high temperature was devised to provide fuel and cooling at the same time. At the same time, a fan with high specification of 140mm and a heater is inserted inside the module.

  • Optimized to stabilize temperature

    Optimized algorithm for controlling low and high temperature was devised to provide fuel and cooling at the same time. At the same time, a fan with high specification of 140mm and a heater is inserted inside the module.

  • Reliable in times of emergency

    DCDC full converter was implemented to prevent voltage swing caused by load variation of fuel cells. In times of overpower, this regulator board induces battery discharge to control output, protecting the drone from 60V-high voltage.

  • Reliable in times of emergency

    DCDC full converter was implemented to prevent voltage swing caused by load variation of fuel cells. In times of overpower, this regulator board induces battery discharge to control output, protecting the drone from 60V-high voltage.

  • Application example: DJ25

  • Application example: DJ25

Powerpack (DM15/DP15) Specs

DM15 Specs
Product
DM15/DP15
DM15 Dimensions (W x L x H)
260(W) x 250(L) x 170(H) mm
Rated Power
1.35KW
DP15 Dimensions (W x L x H)
250(W) x 164(L) x 197(H) mm
Peak Power
9kW
Hydrogen Pressure
0 ~ 350bar
Weight (DM15, Module)
2.9kg
Operating Temperature
0 to 35℃
Weight (DM15, w/ 10.8L Tank)
7.6kg
Storage Temperature
-10 to 40℃
Weight (DP15, w/o Tank & Batteries)
3.3kg
Hybrid Battery (Option 1)
LiPo (2,600mAh x 2)
Weight (Dp15, w/ 10.8L Tank)
8.9kg
Hybrid Battery (Option 2)
LiPo (1,800mAh x 2)
Communication Method
LTE, RF, DTT*
Hybrid Battery (Option 3)
LiPo (10,000mAh x 2)

*DTT: Data Transparent Transmission
