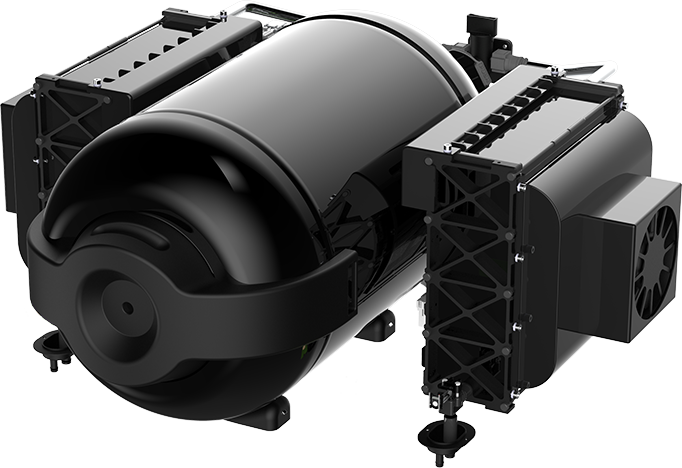

Modular Kit of DP30M2S Powerpack

DM30
Powerpack

Completely customize DP30M2S to fit into your airframe,
drastically upgrading flight time.

Buy Now

  • Customizable to Multiple Drone Platforms

    With simple bolt-tightening, users can integrate their drones with DM30. No additional hardware or software customization is needed - just tighten the bolt!
    * Note: Middle-size drones are recommended.

  • Customizable to Multiple Drone Platforms

    With simple bolt-tightening, users can integrate their drones with DM30. No additional hardware or software customization is needed - just tighten the bolt!
    * Note: Middle-size drones are recommended.

  • Lighter and more cost-effective

    Without the protective case, enjoy all of DP30M2S's capability with less price and weight. DM30 is suitable for customers with existing drone airframe, or for those who need easy transporation and quick response.

  • Lighter and more cost-effective

    Without the protective case, enjoy all of DP30M2S's capability with less price and weight. DM30 is suitable for customers with existing drone airframe, or for those who need easy transporation and quick response.

  • Easy Hydrogen Manifold

    The quick-coupler type increases reliability and customer convenience. With less weight and cost, we provide more reliability and capability.

  • Easy Hydrogen Manifold

    The quick-coupler type increases reliability and customer convenience. With less weight and cost, we provide more reliability and capability.

  • A Total System

    We provide not only hydrogen fuel cell stack, but also a cooling fan to stabilize temperature, regulating boards for safety algorithms and communication, manifold and brackets to connect with hydrogen, hybrid battery for emergency. This whole, technically complete system ensures safety and reliability.

  • A Total System

    We provide not only hydrogen fuel cell stack, but also a cooling fan to stabilize temperature, regulating boards for safety algorithms and communication, manifold and brackets to connect with hydrogen, hybrid battery for emergency. This whole, technically complete system ensures safety and reliability.

  • Purge system

    At the bottom of the module, there are purge valve injected for water release. Other than pure and clean water, there is no harmful emittance after and during flight.

  • Purge system

    At the bottom of the module, there are purge valve injected for water release. Other than pure and clean water, there is no harmful emittance after and during flight.

  • Application example: DT30

  • Application example: DT30

Powerpack (DM30) Specs

DM30 Specs
Product
DM30
Dimensions(W x L x H)
504(W) x 540(L) x 194.5(H) mm
Rated Power
2.6kW
Hydrogen Pressure
0 ~ 350bar
Peak Power
5kW
Operating Temperature
0 to 35℃
Weight(Powerpack)
6.0kg
Storage Temperature
-10 to 40℃
Weight (w/ 10.8L Hydrogen Tank)
11.04kg
Hybrid Battery (Option 1)
LiPo (2,600mAh x 2)
Communication Method
LTE, RF, DTT*
Hybrid Battery (Option 2)
LiPo (1,800mAh x 2)

*DTT: Data Transparent Transmission
